How to Identify Cabinet Hinges?

When you want to change cabinet hinges, first look at the hinge type. Check the overlay style and cup hole diameter. Look at the hinge radius and mounting style. See if there are any manufacturer marks. Knowing these things helps you pick hinges that fit your cabinet door. This stops problems like sagging or doors not lining up.

• Picking the right hinge makes cabinets last longer and work well.

• Features like soft-close or heavy-duty designs make cabinets better and last more years.

You can do each step with basic tools and some patience.

Key Takeaways

• Find out what kind of cabinet hinge you have by looking at its type, overlay style, cup hole size, and how it is mounted. This helps your cabinet doors fit well and open smoothly.

• Pick concealed hinges if you want a modern look. Use exposed hinges for a classic style. Soft-close features make cabinets quieter and safer.

• Measure important parts like the cup hole diameter, hinge radius, and door thickness. This helps you avoid problems with fitting and keeps doors from sagging.

• Check for marks or model numbers from the manufacturer on the hinges. This makes it easy to find the right replacement and saves you time when shopping.

• Make sure new hinges are the same size and work the same as your old ones. Buy from trusted stores or the manufacturer's website to get good hinges that last a long time.

Types of Cabinet Hinges

Concealed vs. Exposed

There are two main styles of cabinet hinges. These are concealed and exposed. Concealed hinges are also called european hinges. They hide inside the cabinet when the door is shut. This makes your kitchen look neat and modern. You can move these hinges in different ways. This helps you line up your cabinet doors. Many european hinges have soft-close features. This makes them quiet and safe for families.

Exposed hinges, like butt hinges, can be seen on the outside. These hinges give your cabinets a classic or fancy look. You often see exposed hinges in old-fashioned or country kitchens. They are simple to put on because they go on the surface. But they do not hide the hardware. This changes how your cabinets look.

Tip: Pick concealed european hinges for a smooth, modern kitchen. Use exposed hinges for a classic or country look.

Here is a table that shows common cabinet hinges and what they do:

Overlay Styles

There are different overlay choices for cabinet hinges. Overlay means how much the door covers the frame. Full overlay hinges let the door cover the whole frame. This gives a smooth and modern look. Partial overlay hinges cover only part of the frame. This leaves some of the cabinet showing. It adds a nice space between doors.

Inset hinges are different. The door sits even with the cabinet frame. The frame goes all around the door. You often see inset hinges in classic kitchens. Overlay hinges come in full and partial styles. Many european hinges have these overlay options.

Face Frame and Flush Hinges

Face frame hinges go on the front of the cabinet frame and the door. You see these a lot in American cabinets. They are easy to put on and can look nice. Some face frame hinges hide a little inside the cabinet. Others stay on the outside.

Flush hinges are also called inset hinges. They work best when the door and frame are the same thickness. One part of the hinge goes on the frame. The other part goes on the inside edge of the door. When you close the door, only the hinge edge or knuckle shows. Flush hinges are good for kitchens with no overlay.

Note: Both face frame and flush hinges are simple to put on. You do not need to cut or change the cabinet to use them.

Key Measurements

When you want to identify cabinet hinges, you need to take a few important measurements. These measurements help you find the right replacement and make sure your cabinet doors work smoothly. Let’s look at the three most important ones.

Cup Hole Diameter

The cup hole diameter is the size of the round hole drilled into the back of your cabinet door. This hole holds the hinge cup. Most modern concealed hinges, like European-style hinges, use a standard cup hole diameter of 35mm. Some smaller doors, such as those in vanities or office cabinets, use a 26mm cup hole.

Tip: Always measure the cup hole diameter before buying new hinges. Even a small difference can cause the hinge to fit poorly or not at all.

To measure the cup hole diameter:

1. Remove the hinge from the door.

2. Use a ruler or digital caliper to measure across the widest part of the circular recess.

3. Check the depth of the hole, which is usually about 1/2 inch (11-12mm) for most European hinges.

Here is a table showing common cup hole diameters and their uses:

If you use the wrong cup hole size, your hinge may not sit flush, and your door may not close properly. Always double-check your measurement for the best fit.

Hinge Radius

The hinge radius is the curve at the corners of the hinge plate. This curve matches the rounded corners of the mortise cut into the door or frame. Most hinges have either a 1/4-inch or 5/8-inch radius. Using the correct hinge radius helps your hinge sit flush and keeps your cabinet door aligned.

You can measure the hinge radius in a few simple ways:

• Use a radius gauge tool to match the curve.

• Use coins as a quick guide: a US dime fits a 1/4-inch radius, and a US quarter fits a 5/8-inch radius.

• Place a ruler or tape measure from the straight edge of the hinge to the end of the curve.

Note: Even a small mismatch in hinge radius can cause your door to hang unevenly or not close all the way.

If you use the wrong radius, your hinge may not fit into the mortise, which can affect how the door swings and how much weight the hinge can hold.

Door and Cabinet Thickness

The thickness of your cabinet door and frame affects which hinges you can use. Thicker, solid wood doors need heavy-duty hinges, such as ball-bearing or sturdy European hinges. Lighter doors made from MDF or laminate can use lighter, clip-on hinges.

• Measure the thickness of your door with a ruler or caliper.

• Standard kitchen cabinet doors are usually 5/8" to 3/4" thick.

• Custom or premium cabinets may have doors up to 1" thick or more.

If your door is heavy, pick a hinge with a higher load capacity to prevent sagging.

Cabinet thickness also matters because it affects where you drill the holes for the hinges. If you use the wrong hinge for your door thickness, the door may not close right or could sag over time.

Key Points to Remember:

• Always measure both the door and cabinet thickness before choosing a hinge.

• Double-check your measurements for accuracy.

• Use the right hinge for your door’s weight and thickness to keep your cabinets working smoothly.

By taking these key measurements, you make sure your new hinges fit perfectly and your cabinet doors open and close the way they should.

Identify Hinge Systems

To figure out hinge systems, check how the hinge connects. See how wide the door opens. Look for special features on the hinge. Each part helps you pick the right hinge.

Mounting Plate Connection

The mounting plate connection attaches the hinge to the cabinet. There are two main types: clip-on and slide-on. Clip-on hinges snap onto the plate without tools. You can take them off or put them on fast. This is good for DIY projects or if you change doors a lot. Slide-on hinges slide onto the plate and lock in place. These work well for heavy doors and last longer.

Here is a table that shows how clip-on and slide-on hinges are different:

To find the mounting plate connection, look for small numbers on the hinge. Check the back of the hinge or under the hinge cup. You can also look at the base plate on the cabinet. These numbers help you match the right hinge and plate.

Tip: If you change doors often, use clip-on hinges. For heavy cabinets, slide-on hinges work better.

Opening Angle

The opening angle shows how wide the door opens. Measure from closed to fully open. Most kitchen cabinets use hinges with angles from 105° to 120°. Some cabinets, like pantries, use wide-angle hinges. These open up to 155° or more. Small spaces use hinges with low angles, like 45° or 60°.

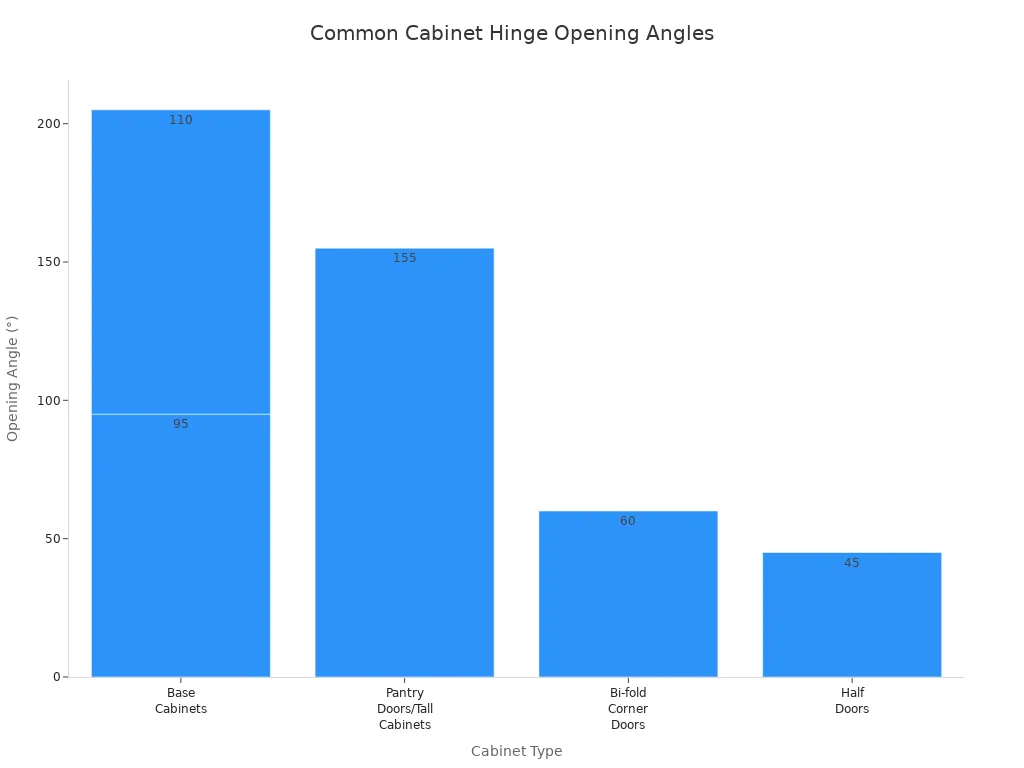

Here is a chart that shows common opening angles for different cabinet types:

You can also see the opening angles in this table:

The opening angle matters because it shows how much you can reach inside. Wide-angle hinges let you open the door all the way. This helps in tight spaces or when you need full access. Standard angles work for most cabinets. Low-angle hinges fit small areas.

Note: Always measure the opening angle before buying hinges. The right angle makes cabinets easier to use and stops doors from hitting things.

Soft-Close Features

Soft-close hinges use a damper to slow the door. This keeps cabinets quiet and safe. You will not hear slamming or pinch your fingers. Soft-close hinges work well in kitchens, bathrooms, and offices.

Here is a table that compares soft-close hinges with standard self-close hinges:

Some brands, like soft-close blumotion, have advanced soft-close systems. These use hydraulic dampers for smooth and silent closing. You can spot soft-close hinges by looking for a small cylinder inside the hinge arm. If you see this part, your hinge has a soft-close system.

Tip: If you want a quiet kitchen or safer cabinets, pick soft-close hinges. They help cabinets last longer and protect doors from damage.

When you figure out hinge systems, check the mounting plate connection, opening angle, and special features. Use these details to pick the best hinge and make your home better.

Manufacturer Marks and Model Numbers

Where to Look

You can find manufacturer marks and model numbers on many cabinet hinges. These marks help you identify the exact hinge you need. Look for small logos, numbers, or letters stamped or printed on the hinge. Most manufacturers place these marks in hidden spots. You might see them on the hinge arm, under the hinge cup, or on the mounting plate.

Here are some common places to check:

• The flat part of the hinge arm

• The inside of the hinge cup

• The base plate attached to the cabinet

• The edge or side of the hinge

Tip: Use a flashlight and magnifying glass if the marks are hard to see. Clean the hinge with a soft cloth to make the numbers easier to read.

Some hinges have a sticker with the model number. Others use engraved codes. Write down any numbers or letters you find. Take a clear photo for reference. This step helps you match your hinge later.

Using Markings for Replacement

Manufacturer marks and model numbers make finding a replacement hinge much easier. You can use these codes to search online or at hardware stores. Many brands, like Blum, Grass, or Hettich, list their hinges by model number. Enter the code on the manufacturer’s website to see matching products.

Follow these steps to use markings for replacement:

1. Find and record all numbers, letters, or logos on your hinge.

2. Search for the model number on the manufacturer’s website or catalog.

3. Compare the hinge’s measurements and features with your cabinet needs.

4. Ask for help at a hardware store if you cannot find an exact match.

If you use the correct model number, you will get a hinge that fits and works well. This saves you time and prevents mistakes. When you shop for a replacement hinge, always bring your notes and photos. You will feel confident that you picked the right part.

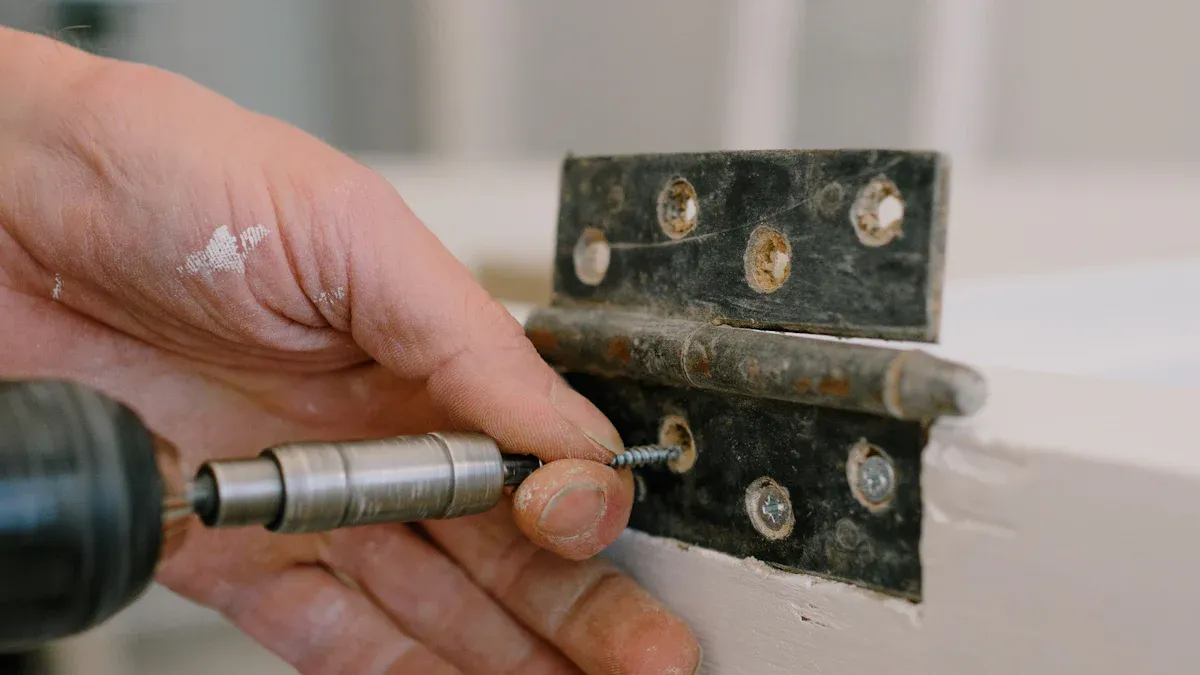

Replacing Kitchen Cabinet Hinges

Matching Your Hinge

When you want to replace kitchen cabinet hinges, you need to make sure the new ones match your old hinges in size and function. Start by checking if your current hinges still work well. If they do, you might reuse them. If not, follow these steps to find the right replacement:

1. Measure your old hinge’s type, size, and the pattern of the mounting holes.

2. Check the cup style and bore distance. These details affect how the hinge attaches and how the door lines up.

3. Decide if you want to reuse your old hinges or buy new ones that fit your cabinet’s overlay style, like full, partial, or inset.

4. If the holes in your cabinet do not match the new hinge, you may need to drill new holes. Use the right tools and measure carefully.

5. Always buy hinges from trusted stores to make sure they fit and last.

6. Think about how much of the cabinet frame the door covers. This overlay affects which hinge you need.

Tip: Write down all your measurements and any numbers or markings you find on your old hinge. This information helps you find a replacement hinge that fits perfectly.

Resources for Replacements

You can use several resources to find the right kitchen cabinet hinges. Manufacturer marks and model numbers on your old hinges help you search for exact matches. Look for these numbers on the back of the hinge or under the base plate. Many manufacturer websites have catalogs with filters for hinge type, finish, and series. These sites also offer guides, FAQs, and dealer locators to help you choose and buy the right hinge.

Hardware store websites also let you search by hinge type, color, and size. You can use their store locators to find a shop near you. If you need help, customer service teams at these stores can answer your questions and guide you to the right product.

Note: Using your notes and measurements makes shopping for replacement hinges much easier and helps you avoid mistakes.

You can figure out what cabinet hinges you have by doing a few easy things. First, measure the hinge with care. Next, look at the hinge type. Write down any model numbers you see. Always check your measurements again to be sure. Make sure the hinge style matches your cabinet. Doing this helps you avoid errors and makes installing easier. If you get stuck, look for help online or ask a pro. Good guides and expert help make changing cabinet hinges much simpler.

FAQ

How do you know if your cabinet hinge is soft-close?

You can check for a small cylinder or damper inside the hinge arm. When you close the door, it moves slowly and does not slam. Soft-close hinges feel smooth and quiet.

What tools do you need to measure cabinet hinges?

You need a ruler or tape measure for length and width. A digital caliper helps with cup hole diameter. A flashlight makes it easier to see markings. You can use coins to check hinge radius.

Can you replace just one hinge, or should you replace all at once?

You can replace one hinge if only one is broken. If hinges look worn or do not match, you should replace all for better function and appearance.

Where do you find the model number on a cabinet hinge?

You can find the model number stamped or printed on the hinge arm, inside the hinge cup, or on the mounting plate. Use a flashlight to see small numbers or letters.
