Butt hinges are an essential component in the world of hardware, providing a pivotal role in the functionality and aesthetics of doors, cabinets, and various other structures. These hinges are known for their versatility and reliability, making them a popular choice in both residential and industrial applications. This article delves into the intricacies of butt hinges, exploring their types, uses, features, and benefits. For those interested in exploring a wide range of hinge options, consider visiting our Hinges page.

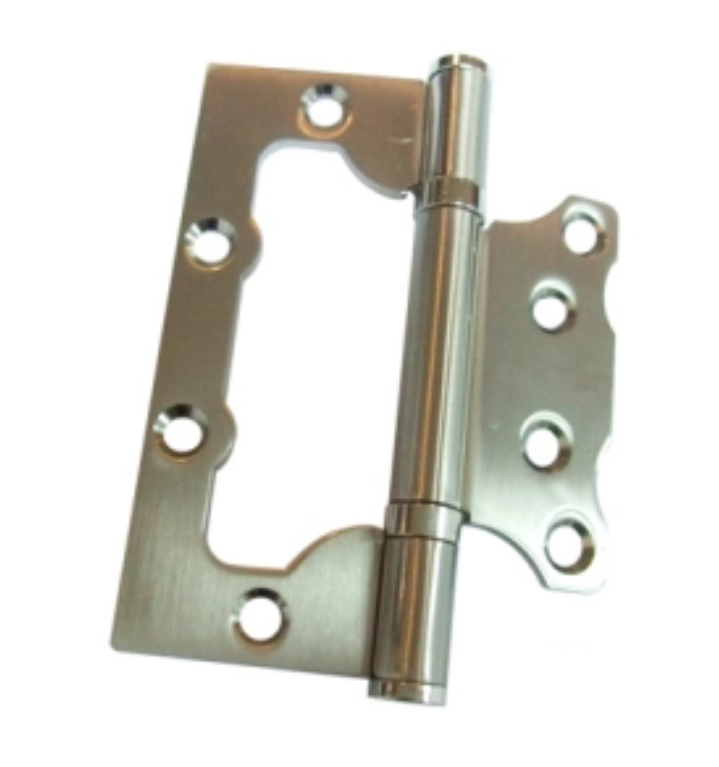

Butt hinges are characterized by their rectangular plates, known as leaves, which are attached to two parallel surfaces. This design allows for a swinging range of up to 180 degrees, making them ideal for doors, gates, and windows. The primary components of a butt hinge include the knuckle, pin, and two leaves. The knuckle is the cylindrical joint that houses the pin, enabling pivotal movement. These hinges are typically mortised, requiring a groove or hole cut into the surfaces for installation, hence their alternate name "mortise hinges."
The operational mechanics of butt hinges are straightforward yet effective. One leaf is mounted on a fixed structure, such as a door frame, while the other is attached to a movable element, like a door. When closed, the leaves meet flush, with the knuckle forming a cylindrical barrel. This design ensures smooth swinging movement, facilitating the opening and closing of doors without the need for manual adjustments.
The design of butt hinges involves several key features that contribute to their functionality and durability. The leaf is the flat, rigid plate that extends from the knuckle and attaches to surfaces such as doors or frames. The width, length, and thickness of the leaf are crucial for optimal load distribution and smooth operation. The knuckle or barrel houses the pin, allowing for pivotal movement. Additional features such as pitch, paint clearance, and countersunk holes enhance the hinge's performance and aesthetic appeal.
Butt hinges are manufactured using advanced techniques such as heat treatment, cold working, extrusion, forming, casting, cutting, and milling. These processes ensure that the hinges meet specific performance requirements and are suitable for various applications. The choice of material, such as steel, stainless steel, brass, or aluminum alloys, is critical for durability and corrosion resistance.
The selection of materials for butt hinges is crucial for their performance and longevity. Common materials include steel, stainless steel, brass, and aluminum alloys. Each material offers unique properties, such as strength, corrosion resistance, and aesthetic appeal. Finishes like polishing, plating, painting, and powder coating enhance the appearance and durability of the hinges, making them suitable for both interior and exterior applications.
The manufacturing of butt hinges involves various techniques, each suited for specific materials and performance requirements. Heat treatment enhances the durability and wear resistance of the hinges, while cold working improves tensile strength and hardness. Extrusion produces continuous hinge profiles with uniform cross-sections, ideal for heavy-duty applications. Forming, or stamping, is a cost-effective method for mass production, offering excellent repeatability and tight dimensional accuracy. Casting is used for producing complex or decorative designs, while cutting and milling ensure precision and close tolerances.
Butt hinges come in various types, each designed for specific applications and environments. Understanding the different types of butt hinges is essential for selecting the right hinge for your needs. The following sections outline the main types of butt hinges, their features, advantages, and ideal applications.
Plain butt hinges are the most common type, used primarily for internal and lightweight doors. They consist of two interlocking plates joined by a central pin and knuckle, with no added friction-reducing elements. These hinges are suitable for light-duty applications, such as closet doors and interior passage doors. However, they are not recommended for exterior or high-traffic applications due to their basic construction.
Ball-bearing butt hinges are engineered for maximum durability and smooth performance. They are ideal for heavy doors, commercial entryways, and doors with automatic closers. These hinges use lubricated ball bearings inside the knuckle to reduce friction and wear, making them perfect for security doors and industrial applications. The increased load-bearing capacity minimizes squeaking, sagging, and operational resistance over time.
Rising butt hinges are designed for doors that need to lift slightly as they open, allowing clearance over thick carpets or uneven flooring. This feature is particularly useful in legacy homes or commercial interiors with variable floor levels. Rising butt hinges simplify door removal for maintenance or cleaning, making them popular in residential garages and commercial workspaces.
Spring butt hinges, also known as self-closing hinges, incorporate an internal spring mechanism that enables doors to shut automatically once released. These hinges are commonly installed on screen doors, fire doors, and security doors where self-closure is important for energy efficiency or regulatory compliance. Adjustable tension allows customization of closing speed and force, creating a consistent, hands-free operation.
Electric butt hinges are advanced hardware solutions that enable the passage of low-voltage current between the door and frame for integrated electronic security systems. They are often used in conjunction with electrified locks, biometric access control, and alarm triggers. Electric butt hinges provide a secure and discreet way to power electronic features in high-security facilities, preserving door aesthetics while supporting complex security requirements.
Butt hinges are widely used across various sectors, including domestic, medical, industrial, military, and agricultural settings. Their versatility and reliability make them a preferred choice for many applications. In the medical industry, heavy-duty, lead-lined doors are crucial for radiation shielding. In military and defense sectors, hinges are essential for heavy doors in secure locations. Domestically, hinges are commonly employed in doors, windows, cupboards, and various household items.
The advantages of butt hinges include ease of installation, durability, and resistance to harsh conditions and corrosion. They are designed to be low-maintenance and offer high security and sturdiness despite their compact size. Additionally, butt hinges can be aesthetically pleasing, adding an extra dimension to their functionality.
In conclusion, butt hinges are a fundamental component in hardware, offering a range of types and features to suit various applications. Their design and manufacturing processes ensure durability and reliability, making them a preferred choice in both residential and industrial settings. For those interested in exploring more about butt hinges, visit our Butt Hinges page.
1. What are the main components of a butt hinge?
The main components of a butt hinge are the knuckle, pin, and two leaves. The knuckle houses the pin, allowing for pivotal movement, while the leaves attach to the surfaces.
2. How are butt hinges installed?
Butt hinges are typically mortised, requiring a groove or hole cut into the surfaces for installation. This ensures a flush fit and smooth operation.
3. What materials are commonly used for butt hinges?
Common materials for butt hinges include steel, stainless steel, brass, and aluminum alloys. Each material offers unique properties such as strength and corrosion resistance.
4. What are the advantages of ball-bearing butt hinges?
Ball-bearing butt hinges offer maximum durability and smooth performance, making them ideal for heavy doors and high-traffic areas. They reduce friction and wear, minimizing operational resistance over time.
5. Can butt hinges be used in exterior applications?
Yes, certain types of butt hinges, such as ball-bearing and electric butt hinges, are suitable for exterior applications due to their durability and resistance to harsh conditions.
6. What are the disadvantages of butt hinges?
Despite their advantages, butt hinges can become loose over time, posing a safety hazard. They are also more visible than concealed hinges, which may be a security concern.
7. How do rising butt hinges work?
Rising butt hinges lift the door slightly as it opens, allowing clearance over thick carpets or uneven flooring. This feature prevents door scraping and simplifies maintenance.
