A vague Request for Quote (RFQ) for industrial hardware guarantees two distinct outcomes. It leads to highly inaccurate pricing. It also causes severe supply chain delays. Procurement and engineering teams need exact alignment on technical requirements before sourcing begins. They must clarify all commercial details early in the process. This rigorous approach prevents hidden expenses down the line. It also stops substandard components from entering your production line.
This guide breaks down the essential criteria you need. We show you exactly what to include in your butt hinge RFQ. You will learn how to evaluate suppliers effectively and methodically. We will help you minimize operational risk. Ultimately, you will secure highly reliable manufacturing partners.
Precision prevents delays: Defining exact load ratings, materials, and pin configurations eliminates supplier guesswork.
Separate tooling from unit costs: OEM and custom requests require transparent cost breakdowns.
Require compliance data upfront: Including specific quality standards (e.g., ANSI/BHMA, ISO) in the RFQ filters out unqualified vendors immediately.
Supply chain clarity: Defining MOQs, blanket order structures, and Incoterms is as critical as the engineering specifications.
Technical ambiguity is the enemy of accurate sourcing. You must provide granular engineering data to receive a precise quote. Suppliers cannot guess your structural requirements. They need concrete metrics to calculate material yields and machining times.
Dimensional exactness serves as your baseline. Instruct your engineering writers to list all mandatory measurements clearly. You must include the overall length and the open width. Specify the exact leaf thickness. Do not forget to detail the knuckle length. Even minor deviations in knuckle sizing affect load distribution. These dimensions dictate the physical footprint of the hardware.

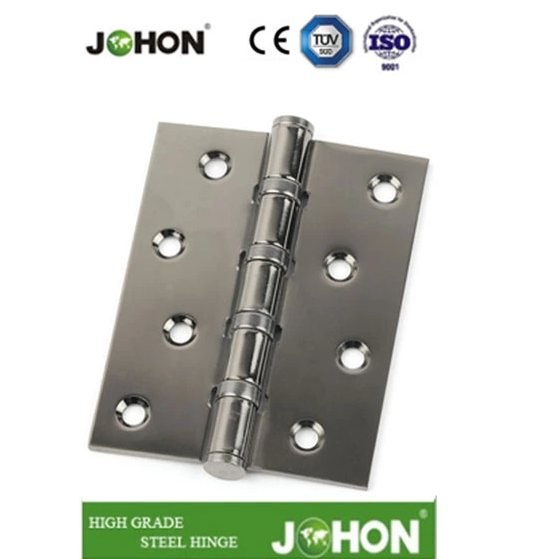

Material and finish selection require careful consideration. Explain your need for specific material grades. For example, specify whether you need 304 or 316 stainless steel. General environments often use standard steel butt hinges. However, corrosive environments demand marine-grade alloys. Detail your finish treatments clearly. Specify if the parts need passivation or zinc plating. Your choice depends heavily on environmental exposure and aesthetic requirements.

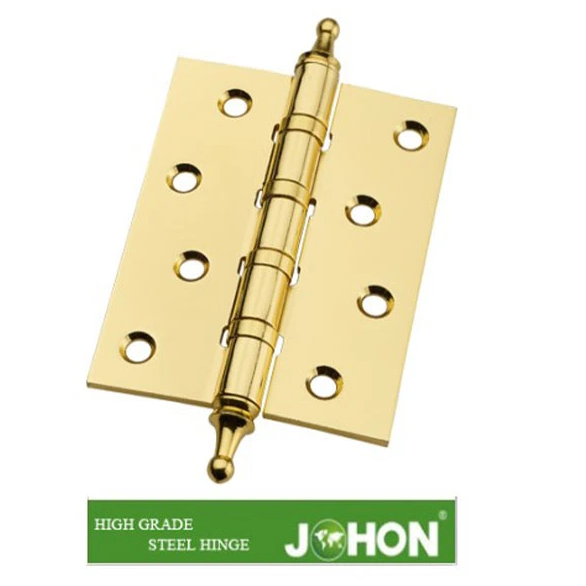

Pin and bearing configurations drastically impact performance longevity. Detail exactly when to specify removable pins versus non-removable pins. Security applications always require non-removable, spun pins. Next, define your operational thresholds. High-cycle applications necessitate ball bearing butt hinges. These bearings reduce friction significantly. They prevent metal fatigue over thousands of cycles.
Hole patterns and swaging represent another critical specification area. Note the vital importance of providing clean CAD drawings. Custom punch patterns require precise coordinate mapping. Define your countersinking requirements clearly. Specify the angle and depth for your fastener heads. Leaf swaging also needs clear definition. You must state whether you need flat, half-swaged, or fully swaged leaves.
The following checklist matrix categorizes mandatory technical inputs for your RFQ document.
Specification Category | Required Data Points | Common Pitfalls to Avoid |
|---|---|---|
Dimensions | Length, open width, leaf thickness, knuckle length | Providing closed width instead of open width |
Material Grade | Specific alloy (e.g., 316L, 1018 Carbon) | Using generic terms like "stainless" |
Pin Style | Removable, fixed, spun, coined | Ignoring security requirements for exterior doors |
Swaging | Flat, half-swaged, full-swaged | Failing to account for door clearance gaps |
Standard catalog parts rarely fit specialized industrial designs. When you source custom butt hinges, you must expand your RFQ scope. The supplier needs to understand the broader manufacturing context. This context empowers them to suggest valuable engineering improvements.
Application context is highly valuable. Advise your buyers to briefly explain the intended end-use. Tell the supplier if the hardware secures heavy-duty electrical enclosures. Specify if you need OEM door hinges for commercial transport vehicles. Suppliers often suggest manufacturing efficiencies when they understand the application. They might recommend an alternative stamping method. They could suggest a more cost-effective finish.
Prototyping and production part approval requirements ensure quality scaling. Outline your need for PPAP (Production Part Approval Process) documentation early. State the required PPAP level (typically Level 3 for automotive or aerospace). Request a First Article Inspection (FAI) report before authorizing full production. You must also define prototype lead times. Ask the supplier how many weeks they need to deliver initial samples.
Intellectual property protection is non-negotiable. Remind your buyers to include strict non-disclosure agreements (NDAs). You must execute these protocols before releasing proprietary CAD files. Proprietary punch patterns and custom swage designs hold competitive value. A signed NDA protects your engineering investments from unauthorized replication.
Provide detailed 3D STEP files alongside 2D PDF prints.
Specify the expected lifecycle of the final assembled product.
Request a formal timeline spanning from tooling creation to sample delivery.
Demand transparent communication regarding outsourced secondary operations.
An RFQ lacking quality benchmarks invites disaster. You must establish strict compliance rules from the very first interaction. Quality assurance cannot act as an afterthought. It must form the foundation of your sourcing strategy.
Industry certifications dictate baseline reliability. Specify the absolute necessity of standard compliances. List environmental regulations like RoHS and REACH if you ship globally. Mention ANSI/BHMA grading for architectural hardware. Grade 1 indicates heavy-duty commercial performance. Grade 3 suits lighter residential applications. Forcing suppliers to acknowledge these standards immediately filters out unqualified vendors.
Performance testing parameters require precise definitions. Detail your expectations for lifecycle testing. State the exact cycle counts the hardware must survive. Define the load-bearing limits meticulously. You must distinguish between radial loads and thrust loads. Radial loads pull horizontally, while thrust loads push vertically. Detail your corrosion resistance expectations. Specify the required salt spray test hours (e.g., 96 hours per ASTM B117). This ensures the finish survives harsh conditions.
Tolerances define the boundary between functional and useless parts. Emphasize the critical need to state acceptable manufacturing margins. Standard stamping operations yield different tolerances than CNC machining. You must align your expectations with the chosen manufacturing method. Tight tolerances increase scrap rates and unit costs. Loose tolerances lead to sloppy door movement. State your acceptable variance for hole placements, overall lengths, and pin diameters explicitly.
Engineering perfection means nothing without supply chain viability. Your RFQ must outline exact commercial expectations. Clear volume definitions and transparent cost structures prevent future disputes. They establish a foundation of mutual trust.
Forecasting and MOQs require a structured approach. Explain how to format your volume requests properly. You should ask for tiered pricing structures. Request quotes for 1,000, 5,000, and 10,000 piece orders. This strategy helps you understand the supplier's scalability. It reveals their true Minimum Order Quantities (MOQs). It also highlights where volume discounts become meaningful.
Tooling cost transparency is a mandatory requirement. For custom orders, mandate a strict separation of costs. The supplier must isolate the one-time NRE (Non-Recurring Engineering) expenses. They must separate tooling charges from the per-piece part price. Amortizing tooling costs into the unit price creates confusion. It binds you financially to a single supplier. Transparent cost breakdowns allow you to compare multiple vendors objectively.
Delivery and Incoterms govern the logistics phase. Note the critical importance of specifying final delivery locations. You must state your preferred Incoterms clearly. For example, specify FOB (Free On Board) or DDP (Delivered Duty Paid). Define your expectations for blanket orders. Let the supplier know if you plan to issue staggered releases over twelve months. This allows them to optimize their raw material purchasing.
Define your anticipated annual usage across all SKUs.
Establish clear penalties or mitigation plans for late deliveries.
Clarify payment terms (e.g., Net 30, Net 60) upfront.
Specify packaging requirements to prevent damage during transit.
Receiving quotes is only the halfway mark. You must analyze the responses systematically. A structured evaluation framework separates capable partners from high-risk vendors.
Assessing cost breakdowns requires vigilance. Guide your buyers to look past the lowest unit price. A remarkably low piece price often masks hidden dangers. Evaluate the quote for hidden freight charges. Look for unexpected tooling maintenance fees. Check for volatile material surcharge risks. The cheapest initial quote often becomes the most expensive long-term mistake.
Engineering pushback signals supplier maturity. Explain this concept to your procurement team. A trustworthy supplier will often challenge a specific tolerance in your RFQ. They might suggest a different material choice. They do this to improve manufacturability. This pushback is a strong "green light." It shows they actually read your drawings. It proves they possess deep manufacturing expertise.
Communication and documentation drive your shortlisting logic. Establish strict rules based on quote completeness. Observe how the supplier handled your testing requirements. If a vendor ignores vital compliance sections, eliminate them. If they leave technical fields blank, they present a massive supply chain risk. Prompt, detailed, and organized responses indicate a well-managed factory.
The evaluation matrix below outlines key response indicators.
Evaluation Area | Positive Indicators (Green Flags) | Risk Indicators (Red Flags) |
|---|---|---|
Pricing Structure | Separates tooling, lists raw material baseline | Lumps all costs into one opaque unit price |
Engineering Review | Suggests minor DFM (Design for Mfg) tweaks | Accepts impossible tolerances without question |
Quality Compliance | Provides sample FAI reports with the quote | Ignores testing standard requirements entirely |
Communication | Responds within requested timeframe | Leaves critical RFQ fields blank or vague |
A comprehensive RFQ bridges the massive gap between engineering intent and procurement reality. It acts as your primary defense against supply chain disruptions. By meticulously detailing technical specifications, you eliminate costly assumptions. By demanding transparent commercial terms, you secure long-term financial predictability.
Your next steps are clear and actionable. First, compile all your updated 2D and 3D technical drawings. Second, utilize the frameworks provided above to structure your final document. Ensure you capture every load requirement and compliance standard. Finally, submit this finalized RFQ to a vetted, compliance-driven manufacturing partner for review. Taking these steps guarantees a streamlined, predictable, and highly successful sourcing process.
A: A standard RFQ focuses heavily on part numbers, basic finishes, and order volumes. It assumes the supplier already holds the tooling. A custom RFQ requires detailed CAD files. It demands specific tooling estimates, prototyping schedules, and First Article Inspection reports. Custom requests also require application context and strict non-disclosure agreements before quoting begins.
A: You must provide the total door weight and exact door dimensions. State the intended number of hinges per door. Clearly define the expected cycle life and operational environment. Most importantly, ask the supplier to verify the safety factor. They should confirm their hardware handles both the radial and thrust loads generated by your specific configuration.
A: Amortized tooling hides your true per-unit production cost. It complicates your ability to switch suppliers later, as the tooling ownership remains unclear. Separating non-recurring engineering expenses from the piece price ensures transparent financial evaluation. It allows you to accurately compare multiple bids and protects your long-term manufacturing investments.
