Specifying the wrong architectural hardware carries massive financial and safety risks for commercial contractors, facility managers, and custom fabricators. You must accurately match the hardware to the complex structural demands of the opening. Guesswork simply does not belong in modern, high-stakes construction environments.
Undersized hinges inevitably lead to sudden door sag, severe frame binding, major security vulnerabilities, and incredibly costly contractor callbacks. The physical danger of a collapsing heavy panel poses immense liability risks. Conversely, relying blindly on oversized hardware unnecessarily drains your strict project budget.
This comprehensive guide provides an evidence-based framework for calculating load capacity, evaluating specific hardware types, and understanding mechanical forces. We will show you exactly how to specify the required components for stable, compliant installation. You will learn to navigate complex industry ratings confidently.
Standard vs. Heavy-Duty: Standard residential hinges safely support 50–100 lbs (with three hinges), while commercial heavy duty door hinges can exceed 1,000 lbs.
The Weak Link: Hinge failure is rarely the metal itself; it is typically the fastener tear-out from the door frame or substrate.
Door Width Multiplier: Door width creates leverage; a wider door requires a exponentially higher hinge load capacity even if the weight remains constant.
Bearing Design Matters: Ball bearing hinges drastically reduce friction and increase dynamic load capacity over time compared to standard plain bearing butt hinges.
Industry Standards: Authentic load claims should always map to ANSI/BHMA testing standards rather than generic manufacturer estimates.
Establish immediate numerical baselines when you compare different hardware classes. Buyers must understand the stark differences between residential and commercial ratings before finalizing purchase orders. You cannot interchange these components safely without risking catastrophic structural failure.
Typical residential butt hinges handle lightweight domestic tasks quite well. They generally support approximately 50 to 100 lbs across a standard three-hinge configuration. You should specify these basic components exclusively for lightweight hollow core interior doors. They lack internal bearings to mitigate friction. Therefore, they are rarely suitable for high-traffic environments or heavy solid wood panels.
Commercial spaces demand extreme durability and rigorous mechanical reliability. These robust hardware solutions span a broad capacity range from 150 lbs to well over 1,000 lbs. Manufacturers differentiate them through thicker material gauge profiles and stringent ANSI Grade 1 certifications. Thicker metal leaves actively prevent unwanted deflection under immense gravitational stress. You will commonly see these robust units on steel exterior entryways or heavy lead-lined hospital doors.

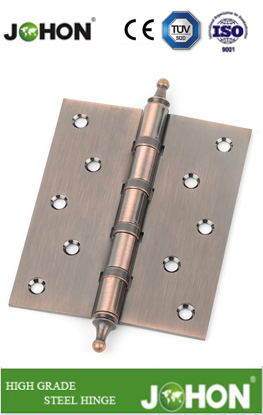

Constant friction destroys conventional hardware over a surprisingly short time. Internal bearings successfully distribute both radial and thrust loads across the vertical knuckle joints. They drastically reduce harmful metal-on-metal wear during operation. Standard commercial ball bearing hinges typically rate for 150 to 250 lbs per three-hinge set. They retain permanent lubrication to ensure smooth motion. This makes them the ultimate gold standard for solid-core interior panels and high-traffic commercial doors.
Hardware Classification | Typical Load Capacity (3-Hinge Set) | Optimal Use Case Scenario |
|---|---|---|
Standard Plain Bearing | 50 - 100 lbs | Residential hollow core interior doors |
Standard Ball Bearing | 150 - 250 lbs | Commercial solid-core wood or metal panels |
Heavy-Duty Commercial | 300 - 1,000+ lbs | Oversized entryways, high-traffic exterior doors |
Provide a practical, engineering-based decision framework for your installation teams. You must specify exact hardware quantities and sizes to ensure long-term structural safety. Follow this logical sequence to evaluate your structural demands properly.
First, calculate the complete raw weight of your moving panel. You must account for the core materials, dense glass inserts, and any added hardware. Solid wood and steel cores add massive bulk compared to hollow cores. Surface-mounted closers, heavy panic bars, and kick plates add hidden weight. We strongly recommend using a manufacturer calculation tool or multiplying the volume by the specific material density. Never guess this critical metric during the planning phase.
Wider panels pull horizontally against the top hinge assembly. They create severe geometric leverage that multiplies the applied force. The geometric reality is simple but unforgiving. For every extra inch over 36 inches in width, you must treat the panel as significantly heavier. Even if the raw physical mass stays constant, the horizontal force multiplies rapidly. A 48-inch wide door weighing 100 lbs exerts far more strain than a 36-inch wide door weighing 100 lbs.
Follow a proven standard rule of thumb across the industry. Install one structural unit per 30 inches of overall door height. Standard 90-inch commercial doors require at least three dedicated units. However, keep diminishing returns clearly in mind. Adding a fourth or fifth unit certainly adds dimensional stability to tall panels. It prevents warping over time. Unfortunately, it does not perfectly multiply your total load capacity. Micro-misalignments mean the hardware rarely shares the heavy burden equally.
Outline the physical and mechanical evaluation dimensions buyers must verify closely before purchase. Hardware aesthetics should never override structural integrity.
Material chemistry directly impacts the ultimate tensile strength of the hardware.
Stainless steel offers the absolute highest load rating and resists environmental corrosion effectively.
Solid brass provides an elegant decorative finish but yields a significantly lower load limit.
Zinc and aluminum composites suit only lightweight, low-stress residential applications.
Metal thickness, commonly known as gauge, actively prevents leaf deflection. Thin metal simply bends and warps under heavy leverage forces.
Shear strength on the central pin completely determines hardware longevity. The metal pin acts as the central structural axis.
Three-knuckle designs work exceptionally well for standard load applications.
Five-knuckle designs distribute massive weight more evenly across multiple bearing points.
More knuckles mean more bearing points to handle intense vertical stress without catastrophic shearing.
Implementation reality often ruins otherwise excellent hardware. A unit proudly rated for 300 lbs will fail violently at 80 lbs if installed improperly. If you drive one-inch screws into weak MDF frames, you risk catastrophic failure. We always specify three-inch minimum hardened steel screws. They must anchor deeply into the actual structural wall framing. Fastener tear-out from soft wood causes the vast majority of modern field failures.
Different geometric profiles handle applied stress distinctly.
Hidden Hinges: These provide incredibly sleek aesthetics but carry strict structural load limitations. They demand much deeper mortising into the wooden frame. This invasive routing process sometimes weakens the panel frame itself.
Piano Hinges (Continuous): These mechanisms distribute sheer weight evenly across the entire frame length. They maximize overall load capacity effortlessly. You should specify them immediately for heavy, awkward, or extremely wide door applications.
When architects formally ask how much weight can a door hinge hold, they must look toward recognized testing protocols. We never rely on basic marketing claims for structural safety.
Commercial hardware undergoes brutal mechanical cycle testing. The Builders Hardware Manufacturers Association (BHMA) issues strict Grade 1, 2, and 3 certifications. Grade 1 signifies the highest performance tier available. It guarantees structural survival through millions of heavy swing cycles. These dynamic load tests reveal far more than simple static load limits. They mimic decades of real-world abuse accurately.
A stationary panel merely exerts static downward force. However, real-world environments constantly involve chaotic motion. A heavy panel swinging open forcefully exerts massive dynamic stress on the internal pin. Catching a sudden aggressive wind gust multiplies this sheer force instantly. Dynamic load ratings matter deeply for all high-traffic exterior installations.
Corrosion slowly destroys structural limits over time. Coastal environments and industrial chemical plants destroy standard steel rapidly. Aggressive rust directly attacks the structural pin and moving knuckles. We always stipulate marine-grade 316 stainless steel for these specific use cases. It maintains absolute structural integrity despite harsh chemical or saline exposure.
Drive your final procurement decisions using a clear, logical purchasing matrix based on weight and traffic volume.
If under 100 lbs & low traffic: Standard residential plain bearing components will suffice nicely.
If 100–200 lbs & high traffic: Commercial grade bearing components are absolutely mandatory.
If 200+ lbs or oversized width: You must specify Grade 1 heavy duty door hinges, continuous geared designs, or specialized pivot hardware immediately.
Take exact physical measurements of your architectural panel today. You must meticulously verify the frame material and structural stud depth. Consult the technical manufacturer catalog next to confirm load limits. If you face highly customized or oversized applications, contact a technical sales engineering team immediately. They will gladly perform a custom load analysis for your specific site.
When you evaluate structural limitations, you must look far beyond the metal bracket itself. Overall frame integrity, fastener length, and daily traffic volume heavily dictate true mechanical performance.
Always prioritize deep fastener penetration into the structural framing to prevent sudden catastrophic tear-out.
Calculate the leverage multiplier precisely if your panel width ever exceeds 36 inches.
Select robust bearing-equipped components to mitigate long-term friction wear and prevent metal fatigue.
Demand official BHMA Grade 1 certification for any commercial, industrial, or high-traffic installation.
Browse the heavy-duty technical catalog to find precise hardware specifications today. Download an official specification data sheet for your strict project records. Contact the dedicated technical support team directly if you require advanced custom load calculations.
A: A single standard residential hinge typically holds about 30 to 50 lbs safely. When you use a standard set of three, they can support a combined total of approximately 100 lbs. They are engineered strictly for lightweight, hollow-core interior applications and fail quickly under heavy commercial loads.
A: Yes, adding a fourth unit adds structural stability and marginal load capacity. However, the total load capacity does not scale linearly. The top hinge always takes the brunt of the lateral pulling force. Minor alignment imperfections mean the extra hardware rarely carries an equal share of the total weight.
A: Hidden, or concealed, designs typically support a range of 40 to 150 lbs depending entirely on the specific model. They require precise frame routing and offer excellent multi-axis adjustments. However, the deep wood mortising required can sometimes weaken the surrounding panel structure significantly.
A: Sagging rarely stems from bent metal leaves. It almost always results from fastener pull-out or stripped wood inside the frame. Additionally, a lack of ball bearings causes severe friction wear over time. Always ensure you use three-inch hardened steel screws anchored firmly into the structural wall studs.
