Specifying the wrong hinge for a commercial or solid-core door doesn't just cause squeaking—it leads to frame deflection, dragged thresholds, and compromised security or fire compliance. When hardware fails, entire access points fail. You simply cannot afford to treat these structural components as an afterthought. Standard friction models quickly buckle under high radial and thrust loads. Heavy doors pull violently away from the top jamb while pressing down relentlessly on the lowest knuckle. For facility managers and contractors, evaluating these physical realities upfront prevents costly maintenance callbacks. We must analyze physical forces before finalizing any hardware purchase. This guide breaks down the precise metrics—weight, width, and cycle frequency—required to execute an evidence-based ball bearing hinge selection. You will learn exactly how to match your door's physical demands to the correct hardware specifications smoothly and efficiently.
Door weight and width dictate the structural gauge and height of the required hinge.
"Job conditions" (expected daily cycles) are just as critical as static weight when choosing between standard and heavy-weight options.
Proper ball bearing hinge selection requires matching the hinge material to building codes (e.g., steel/stainless for fire-rated assemblies).
Upgrading to 5-inch or heavy-duty gauges is a low-cost insurance policy against premature door failure.
Understanding door mechanics requires looking closely at how forces interact. Doors do not merely hang; they exert complex, continuous stress on their frames. We classify these stresses into two primary categories: radial loads and thrust loads. A thrust load represents the downward vertical force generated by gravity pulling on the door's mass. This downward pressure compresses the knuckles of the hinges. Conversely, a radial load represents the horizontal pulling force. As the door swings, its weight tries to pry the top hinge away from the door jamb.
The cost of under-specifying hardware reveals itself quickly in commercial environments. When you install standard friction hinges on heavy, solid-core doors, structural degradation begins almost immediately. You will first notice door sagging. This sagging creates latch misalignment, preventing the door from locking securely. Compromised weatherstripping soon follows, allowing drafts and moisture to penetrate the building envelope. Furthermore, severe sagging forces users to push harder to operate the door. This increased friction often leads to ADA compliance failures, as commercial doors must open smoothly under minimal pressure.
Standard friction hinges are entirely obsolete for commercial applications. Their knuckles sit directly on top of one another, grinding metal against metal with every swing. This friction produces unpleasant squeaks, generates metal dust, and accelerates wear. By contrast, ball bearing hinges permanently separate these knuckles. They insert lubricated steel bearings between the joints to bear sustained vertical loads. They absorb the thrust load efficiently, ensuring the door glides open smoothly even after years of heavy service.
Static door weight tells only half the story. You must also factor in the leverage multiplier, which is determined by the door's width. In physical terms, a door acts as a lever arm attached to a pivot point. A 150-pound door that measures three feet wide applies significantly less stress to the top hinge than a 150-pound door measuring four feet wide. As width increases, the center of gravity shifts further away from the jamb. This shift dramatically increases the radial leverage pulling against the top hinge. You must accommodate this extra leverage to prevent frame tear-out.
Beyond dimensions, we must evaluate daily usage. Hardware manufacturers refer to this metric as "job conditions." The frequency of use dictates how quickly internal bearings wear down over time. We categorize job conditions into three distinct frequency tiers. Accurately plotting your door within these tiers ensures long-term reliability.
Frequency of Use Matrix
Frequency Tier | Daily Cycles | Common Applications |
|---|---|---|
Low Frequency | Under 100 cycles/day | Residential closets, private office interiors, utility rooms |
Medium Frequency | 100 – 400 cycles/day | Standard office doors, low-traffic public restrooms, storage corridors |
High Frequency | Over 400 cycles/day | Main commercial entrances, schools, hospital corridors, retail storefronts |
A crucial rule of thumb exists in commercial architecture: high-frequency use automatically pushes any door into the heavy-weight hardware category. Even if your door weighs a mere 100 pounds, subjecting it to over 400 cycles a day demands heavy-duty hardware. The constant repetitive motion breaks down standard gauges far faster than static weight alone.
Selecting the correct dimensions involves a straightforward baseline sizing logic. You determine hinge height primarily by examining the door's thickness and width. Conversely, you determine hinge width by calculating clearance requirements. You need enough width—often called the "throw"—to ensure the door clears thick decorative trim or wall casings when opened to 180 degrees.
To accurately size your hardware, follow this established evaluation process:
Measure Door Thickness: Standard commercial interior doors generally measure 1-3/4 inches thick, while some heavy exterior doors reach up to 2-1/4 inches.
Measure Door Width: Record the exact width in inches. Anything over 36 inches triggers a need for taller hardware to combat leverage.
Calculate Clearance: Measure the thickness of the casing or trim wrapping around the door frame. Add this to your door thickness to find the minimum open clearance needed.

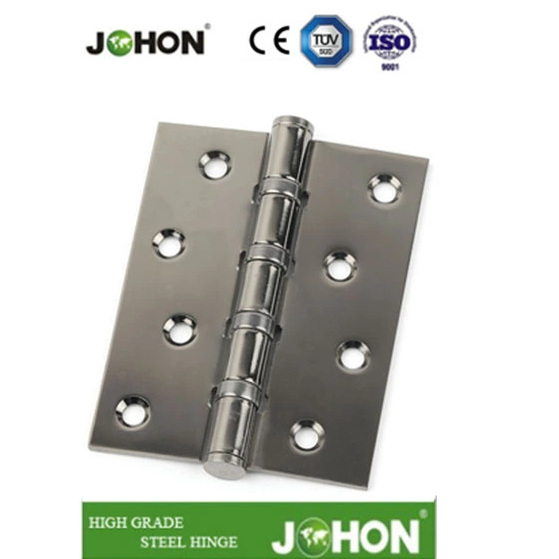

When assessing standard commercial projects, 4 inch ball bearing hinges serve as the reliable workhorse. They are ideal for doors up to 3'0" wide and 1-3/4" thick. Their standard capacity comfortably supports doors up to 150 pounds, assuming low to medium frequency usage. For most interior office environments, this size strikes the perfect balance between structural integrity and aesthetic subtlety.

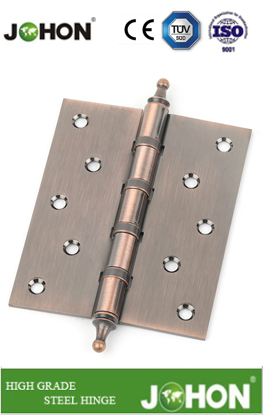

However, specific scenarios require you to step up your hardware. You should switch to 5 inch ball bearing hinges whenever your door width exceeds 3'0" and approaches 4'0". The extra inch in height spreads the radial load across a larger section of the jamb, preventing tear-out. Furthermore, they are absolutely necessary for doors exceeding 150 pounds. They also provide the necessary extended throw required to clear exceptionally wide or deep trim, ensuring the door face does not bind against the wall.
Once you determine the height and width, you must select the appropriate metal thickness. In the hardware industry, we refer to this thickness as the "gauge." The gauge thickness dictates the hardware's tensile strength and its ability to resist deformation over decades of use. Standard weight models typically feature a metal thickness of .134 inches. In contrast, heavy-weight models measure .190 inches thick. This seemingly small fraction of an inch adds massive structural rigidity.
Bearing count also plays a pivotal role in this distinction. Standard models usually feature two bearings. These two bearings sit between the central knuckles to manage the downward thrust of a moderately heavy door. However, specifying heavy duty door hinges introduces four bearings into the assembly. Two bearings bear the primary downward weight, while the additional two bearings provide upward support. This four-bearing configuration prevents the door from shifting vertically during aggressive usage, such as when strong winds catch an exterior door.
To prevent specification errors, we rely on a strict framework. We always default to heavy-weight (.190 gauge) hardware if the door exceeds 150 pounds or operates in a high-traffic environment.
Hinge Selection Decision Chart
Door Weight | Usage Frequency | Recommended Gauge | Bearing Count |
|---|---|---|---|
Under 150 lbs | Low / Medium | Standard (.134") | 2 Bearings |
Under 150 lbs | High Traffic | Heavy Duty (.190") | 4 Bearings |
Over 150 lbs | Low / Medium | Heavy Duty (.190") | 4 Bearings |
Over 150 lbs | High Traffic | Heavy Duty (.190") | 4 Bearings |
Even the highest-quality hardware will fail if you ignore implementation risks and building codes. Material selection represents the most critical compliance guardrail. Building owners must remember that National Fire Protection Association (NFPA) 80 codes strictly regulate fire-rated doors. NFPA 80 requires installers to use steel or stainless steel hinges for fire-rated assemblies. Decorative materials like brass and bronze possess lower melting points. In a severe fire, brass knuckles will melt, causing the fire door to collapse and breach the fire wall.
Next, you must verify substrate integrity. A heavy-duty hinge is only as strong as the frame holding it. You cannot mount a heavy door to a weak frame and expect success.
Hollow Metal Frames: Ensure the frame contains internal welded backing plates. Without backing plates, heavy doors will strip the mounting screws straight out of the thin sheet metal.
Timber Frames: Always discard the short, standard screws provided in the box. Replace them with elongated wood screws (often 3 inches or longer) that reach completely through the door jamb and bite securely into the structural wall studs.
Finally, adhere strictly to industry quantity rules. The standard formula requires one hinge per every 30 inches of door height. Therefore, a standard door measuring up to 90 inches tall requires three hinges. Any door exceeding 90 inches requires four hinges. Spacing them correctly distributes both thrust and radial loads evenly across the entire frame.
Summary of Evaluation: Successful hardware specification relies heavily on calculating a precise trifecta: door weight, door width, and daily cycle frequency. Missing any of these metrics leads to structural sagging.
Shortlisting Logic: Always audit your physical doors and local fire building codes before finalizing a purchase. Match your gauge thickness to the traffic levels expected in your facility.
Next-Step Action: Browse appropriate heavy-duty commercial catalogs today. Consult a certified hardware specialist if your project requires custom architectural throws, or request a volume quote to outfit your entire facility safely.
A: No. A 200 lb door exceeds the structural limit for standard .134 gauge hinges. It requires a heavy-weight (.190 gauge) hinge, typically 4.5 or 5 inches depending on door width, to prevent sagging and frame damage.
A: Yes, because the lubricated bearings prevent the metal knuckles from grinding against each other. This separation completely eliminates friction noise while simultaneously supporting massive vertical thrust loads.
A: You can estimate weight by multiplying the door's square footage by a material weight factor. For example, solid core wood typically weighs around 4 to 5 pounds per square foot, while 18-gauge hollow metal weighs roughly 3.5 pounds per square foot. Always reference manufacturer spec sheets when possible for precise numbers.
